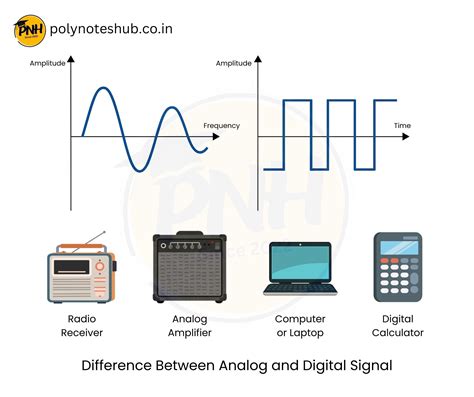

Being Digital Electronification Then Analog To Digital From Analog Whispers to Digital Shouts A Comprehensive Guide to Electronification and AnalogtoDigital Conversion The world around us once a realm of smoothly varying signals and continuous processes has increasingly become digitized This transformation hinges on the process of electronification the conversion of physical phenomena into electrical signals and subsequently analogto digital conversion ADC the transformation of these continuous electrical signals into discrete digital representations Understanding these processes is key to comprehending the digital revolution that shapes our lives Electronification Bridging the Physical and Electrical Worlds Electronification acts as the foundational step in the digital journey It involves translating various physical quantities light sound pressure temperature etc into corresponding electrical signals Think of it as a translator conveying information from one language physical phenomena to another electrical signals Methods of Electronification Photoelectric effect Light striking a photosensitive material releases electrons generating an electrical current proportional to the lights intensity This principle is at the heart of digital cameras and scanners Piezoelectric effect Certain materials generate an electrical charge when subjected to mechanical stress pressure vibration This is used in microphones accelerometers and even some touchscreens Thermoelectric effect Temperature differences create voltage differentials enabling temperature sensors in various applications from ovens to medical devices Electromagnetic induction Changing magnetic fields induce currents in conductors forming the basis of many sensors and power generation systems Analog Signals The Continuous Flow Before digitization information exists as analog signals These are continuous waveforms that vary smoothly over time mirroring the continuous nature of the physical world Imagine 2 a vinyl records groove the needles movement reflects the continuous variations in sound pressure Similarly a thermometers mercury level smoothly follows temperature fluctuations The Limitations of Analog Analog signals are susceptible to noise and distortion As the signal travels it degrades accumulating errors and making accurate representation challenging Furthermore storing and manipulating analog information is inherently complex and prone to errors AnalogtoDigital Conversion ADC Discretizing the Continuous ADC is the crucial bridge between the analog and digital worlds It takes a continuous analog signal and converts it into a discrete digital representation This involves three key steps 1 Sampling The analog signal is measured at regular intervals sampling rate The higher the sampling rate the more accurately the original signal is represented The Nyquist Shannon sampling theorem states that the sampling rate must be at least twice the highest frequency present in the signal to avoid information loss aliasing Think of taking snapshots of a moving object more snapshots provide a better representation of its movement 2 Quantization The sampled values are then assigned to discrete levels representing the amplitude of the signal Each level is assigned a unique digital code eg a binary number The number of quantization levels determines the resolution bit depth of the digital signal More levels provide finer detail and better accuracy akin to using more colors in an image 3 Encoding Finally the quantized values are encoded into a digital format typically binary for storage and processing by computers Practical Applications of ADC ADC is ubiquitous in modern technology It is essential in Digital audio Converting sound waves from microphones into digital audio files MP3s WAVs Digital imaging Converting light intensity from a camera sensor into digital images JPEGs PNGs Medical imaging Processing signals from MRI CT and ultrasound machines to create diagnostic images Industrial control systems Monitoring and controlling various physical processes in factories and power plants Data acquisition systems Collecting and analyzing data from various sensors in scientific 3 research and engineering Analog to Digital and Back Again DAC Closing the Loop While ADC converts analog to digital the reverse process DigitaltoAnalog Conversion DAC is equally important DAC converts digital signals back into analog for output devices like speakers displays and actuators This forms a complete loop enabling the manipulation and reproduction of information in both the digital and analog realms Future Trends Advancements in ADC technology focus on achieving higher sampling rates greater bit depths and improved efficiency This leads to higher fidelity audio and video more accurate scientific measurements and more sophisticated control systems Furthermore the integration of ADC directly onto sensor chips systemonachip or SoC minimizes noise and latency paving the way for more powerful and responsive devices in the Internet of Things IoT Conclusion The journey from analog whispers to digital shouts is a remarkable technological achievement Understanding electronification and ADC provides a crucial lens through which to view the digital age As technology continues its relentless march forward mastering these fundamental concepts remains essential for innovation in various fields shaping a future where the seamless interplay between the analog and digital realms defines our experience Expert FAQs 1 What are the implications of a low sampling rate in ADC A low sampling rate can lead to aliasing where highfrequency components of the signal are incorrectly represented as lower frequencies resulting in distortion and loss of information This is why proper selection of the sampling rate based on the NyquistShannon theorem is crucial 2 How does quantization noise affect the accuracy of ADC Quantization is inherently a lossy process The difference between the continuous analog value and its quantized digital representation is quantization noise Increasing the bit depth reduces this noise improving the accuracy of the conversion 3 What are the tradeoffs between speed resolution and cost in ADC design Higher speed sampling rate and resolution bit depth generally require more complex and expensive circuitry Designers must carefully balance these factors to optimize performance for the specific application 4 4 How does ADC contribute to the security vulnerabilities in IoT devices ADC is a crucial component in IoT devices processing sensor data that can reveal sensitive information Vulnerabilities in the ADC process or its associated software can be exploited to compromise the security of the entire system Robust security measures are therefore essential 5 What are the emerging trends in ADC technology beyond higher speed and resolution Research focuses on developing energyefficient ADCs particularly crucial for battery powered devices Furthermore exploring novel architectures and materials could enable ADCs with improved linearity dynamic range and reduced distortion pushing the boundaries of whats achievable
